Description
The MINI BIO boilers with a power of 10 Kw and 20 Kw are the innovative solution in the category of small boilers for the automatic combustion of solid fuels, allowing the burning of wood pellets ensuring compliance with the strict emission limits of the European Union.
Main Features
– Automatic ignition
– Flame control using photocells
– Low inertia thermal inertia with operating range from 20% ~ 100%
– Low electricity consumption
– Possibility of 16 heating circuits (radiators and underfloor heating or hot water).
– Burner temperature control
– Three (3) phases to eliminate detonation or ignition of gaseous fuels during combustion,
– AUTOMATIC START of operation after a power failure
– High performance greater than 94.5%
– Automatic cleaning with ease of ash removal from the combustion grate
– Power efficiency range from 3 to 10 Kw
– Corrosion resistant galvanized fuel tank
– A message is automatically displayed when maintenance is required
– Displays operating statistics such as minimum, maximum and average burner power, average fuel consumption, etc.
– Temperature parameters are presented in the form of numbers and graphs on the large graphic display as well as many other useful functions
– Operation of the burner with easy-to-read menu, can be compared to the oil burner
– Automatic burner configuration second generation FUZZY LOGIC controller
It also includes
- Second generation Fuzzy Logic programmer for smooth operation and reduced consumption up to 30%
- Fuel supply tank 230 liters
- Ceramic catalyst
- Horizontal cylindrical heat exchanger
- Automatic ash disposal
- Combustion photocell
- Grills burning pellets and oats
- Boiler temperature sensor
- Fuel feed auger from the tank to the combustion chamber
- Central heating and hot water pump control
- Automatic igniter
- Large easy-to-read LCD display with notification logger and simplified menu
- Notification logger
- Simplified menu
- Possibility of control-connection with a solar water heater
- Temperature programmer with selection of time and days of the week
- Automatic start in case of power failure
- Language selection menu
- Choice of fuel
- Combustion fan
Extra Features
PARAMETER | SI | MINI BIO 10 | MINI BIO 20 |
Power Range | KW | 3.3 ~ 10 | 6 ~ 20 |
Heating area | m2 | 50 ~ 200 | 100 ~ 300 |
Weight | kg | 200 | 270 |
Fuel tank | Liter | 230 |240 |
Consumption at maximum operation | kg/hr | 3 | 6 |
Consumption in minimum mode | kg/hr | 1 | 2 |
Electric power consumption | W| 360 |360 |
Boiler length | mm |602 | 702 |
Boiler width | mm | 810 | 910 |
Boiler height | mm | 1660 |1640 |
More Information
It is an excellent device for residential buildings, where the boiler room is either very small, or does not exist at all. It has been designed with simple operation and clear options in mind, combined with a high level of technology. Recommended for heating from 50 ~ 300 m2.
An important advantage of the MINI BIO burner is the simple operation which is limited to refilling the fuel in the tank by pressing the START button. Within a few minutes, the boiler automatically ignites the fuel, adjusting the combustion parameters to maintain a constant temperature for space heating and hot water. All indications are presented clearly on the large screen.

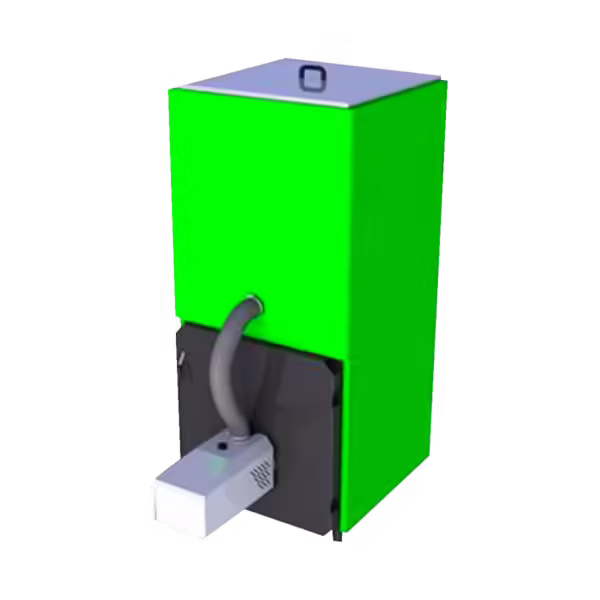

The boiler is cube-shaped and consists of four parts:
– The first is the high efficiency heat exchanger made of 4~5mm thick high quality steel.
– The second part is the Platinum Bio burner, designed in refractory steel, allowing temperatures up to 1150 ºC.
– The third part of the boiler is the 180 liter capacity fuel tank, located above the heat exchanger, reducing space requirements. It is equipped for protection in case of flame return.
– The fourth element is the application of the second generation of FUZZY LOGIC II control, as well as energy efficient elements, resulting in lower electricity consumption, compared to other burners on the market. In addition, the controller differentiation makes it possible to reduce fuel consumption by 30%.
